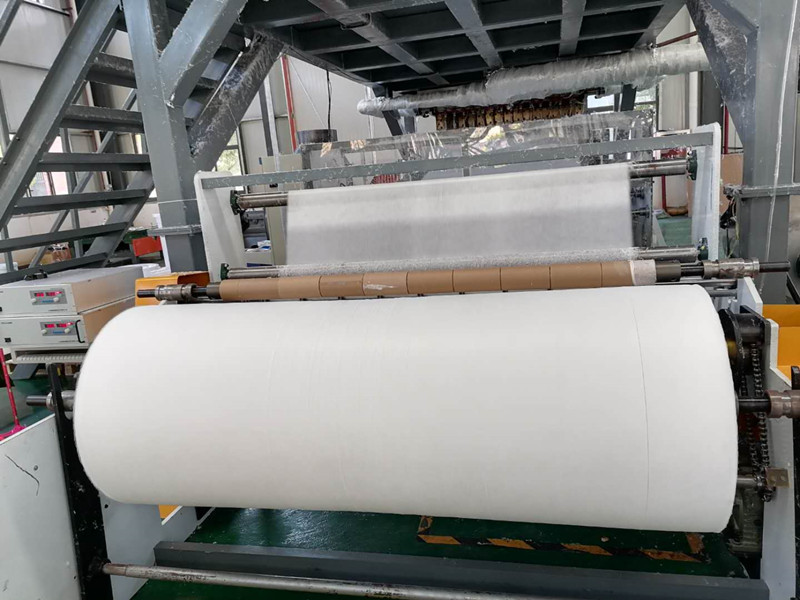

1600熔喷布生产线
With R & D, production and manufacturing as the main line, domestic and foreign trade at the same time, innovative sales mode, the robot, servo motor, intelligent equipment bigger and stronger, the medical equipment products around the smart elderly care, provide more rehabilitation AIDS and health monitoring and sensing equipment, create greater economic and social benefits.
Classification：
Key words：
1600熔喷布生产线
Hotline：
产品简介
熔喷布生产线主要由熔喷平台主体、热风系统、接收成网系统、驻极系统、分切成卷机组成。
基本参数
| 生产线名称 | 熔喷布生产线 |
| 生产线型号 | ZJ90-160 |
| 产品规格 | |
| 产品克重 | 8-120g/m2 |
| 熔喷纤维直径 | 2-5μm |
| 产品有效宽度 | 1600mm |
| 均匀度CV值 | ≤4% |
| 原材料 | 熔喷专用PP,PE |
| 产品用途 | N95，医用口罩，防护服用熔喷布，热熔胶网 |
| 设备技术数据 | |
| 挤出机 | 90型挤出机 |
| 产能 | 1.0吨-1.4吨/天 |
| 喷丝板有效宽度 | 1400mm |
| 网帘布宽度 | 1850mm |
| 机械设计线速度 | ≤40m/min |
| 卷取最大直径 | φ600mm |
| 设备外型尺寸 | 10×10×5m |
| 生产线能源需求 | |
| 整线总装机功率 | 500kw |
| 生产时功率消耗 | 实际使用320-380kwh |
